HLCM-8E80Stone Edge Polishing MachineHLCM-8E80石邊拋光機
領跑智能制造新“石”代
HLCM-8E80Stone Edge Polishing MachineHLCM-8E80石邊拋光機
所屬品牌：
所屬類別：板材打磨設備
想了解更多相關產品信息，請聯系我們！
0594-2197723
hualongmc@163.com
- 產品說明
- 技術參數
石邊拋光機
HLCM-8E80 型機器具備線性加工和全自動功能，是一款特殊形狀的機器，適用于大理石、花崗巖、人造石、陶瓷、玻璃等材料的批量邊緣打磨生產。
這種具有連續運行功能的邊緣拋光機降低了人工成本，提高了產品質量，并且無需像傳統單頭銑床那樣進行復雜的夾持操作以及更換磨盤。它是大規模石材打磨加工行業升級的首選設備。

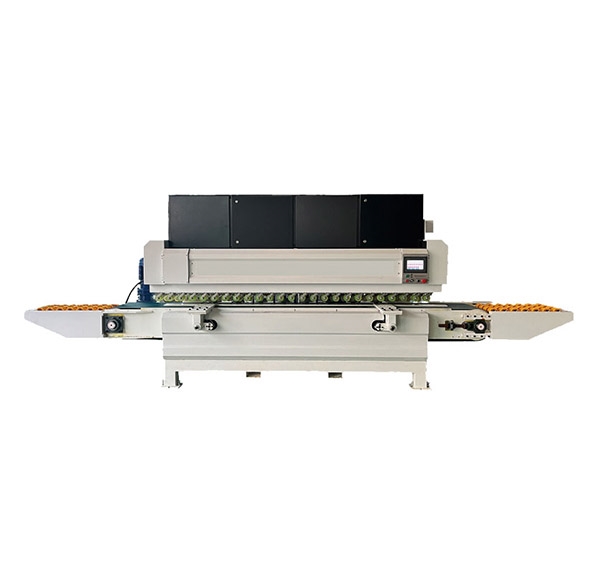

Stone Edge Polishing Machine
HLCM-8E80with line processing and full auto, is a special-shaped machine fits for mass production of edge grinding of marble, granite, artificial stone, ceramics, glass etc.
The edge polishing machine with continuous operation reduces the labor cost, improves product quality and ignores the complex clamping of traditional single head milling machine and replacement of grinding wheel. It's the preferred equipment in the upgrading of mass grinding stone processing industry.
主要特點
1. 刀具調整能確保所有砂輪保持一致。
2. 快速更換的輪子大大節省了更換砂輪的時間。
3. 恒壓自動補償取代了傳統用于保持產品表面亮度的補償方法。
4. 砂輪的軸心與市場上的砂輪相匹配，這大大節省了磨料的成本。
5. 當物料短缺時，會自動發出懸停警報。
6. 能夠?qū)崿F(xiàn)任意形狀的邊緣以及倒角槽加工。
Main Features
1. Tool setting keeps all grinding wheels be consistent.
2. Fast changing wheel saves a lot of time for replacing grinding wheel.
3. The automatic compensation of constant pressure replaces the traditional method of compensation to maintain the brightness of the surface of the product.
4. The spindle of grinding wheel 30 matches the market grinding wheel, greatly saving the cost of abrasive.
5. Automatic hovering alarm in case of material shortage.
6. Be capable of arbitrary edge shape and the chamfering slotting.
|
名稱
|
Name
|
單位Unit
|
HL8E-80
|
|
主電機功率
|
Main motor power
|
KW
|
4
|
|
總功率
|
Total Power
|
KW
|
36
|
|
成型輪直徑
|
Dlameter of profile wheel
|
MM
|
140-180
|
|
拋光輪直徑
|
Dlameter of pollshing wheel
|
MM
|
140-180
|
|
磨輪孔徑
|
Hole diameter of wheel
|
MM
|
30
|
|
最大加工寬度
|
Max processing width
|
MM
|
2000
|
|
最大加工厚度
|
Max processing thickness
|
MM
|
80
|
|
加工速度
|
Processing speed
|
M/MIN
|
0.2-3
|
|
冷卻水量
|
Water consumption
|
L/MIN
|
110
|
|
外形尺寸
|
0verall dimension
|
MM
|
4300*1200*2100
|
|
重量
|
Weight
|
KG
|
4500
|
溫馨提示：如果想了解更多細節，規格、標準、價格和解決方案，請聯系我們。
