所屬品牌：華隆
所屬類別：板材打磨設備
0594-2197723
hualongmc@163.com

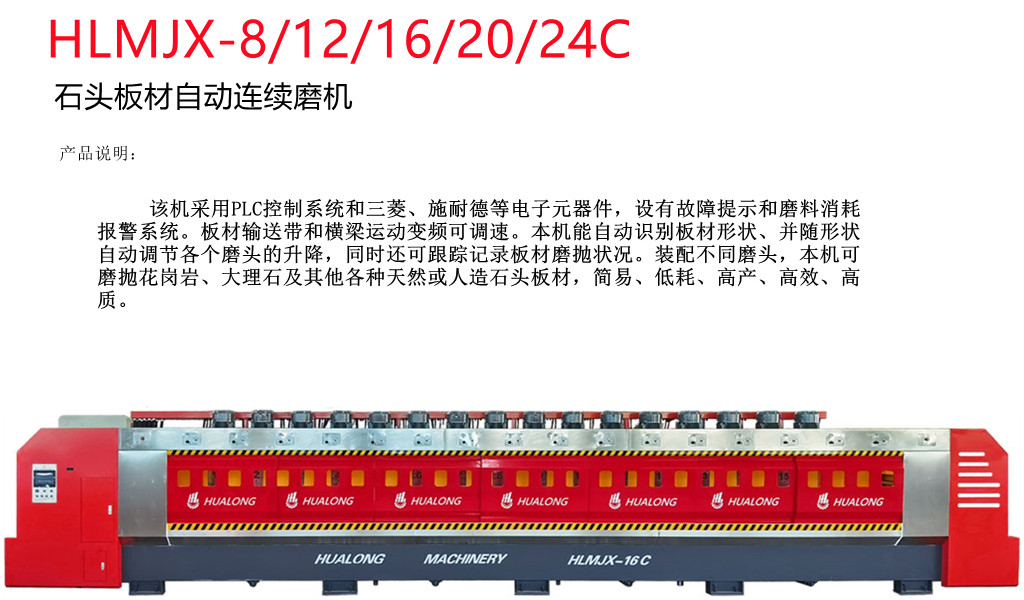

HLMJX-16 型自動石材板材連續拋光機，配備多個樹脂盤頭和 PLC 控制系統，能夠連續自動地對板材進行研磨和拋光，是花崗巖等硬質石材表面處理的理想選擇。安裝不同類型的頭，它也非常適合大理石、石英巖和其他石材板材的加工。

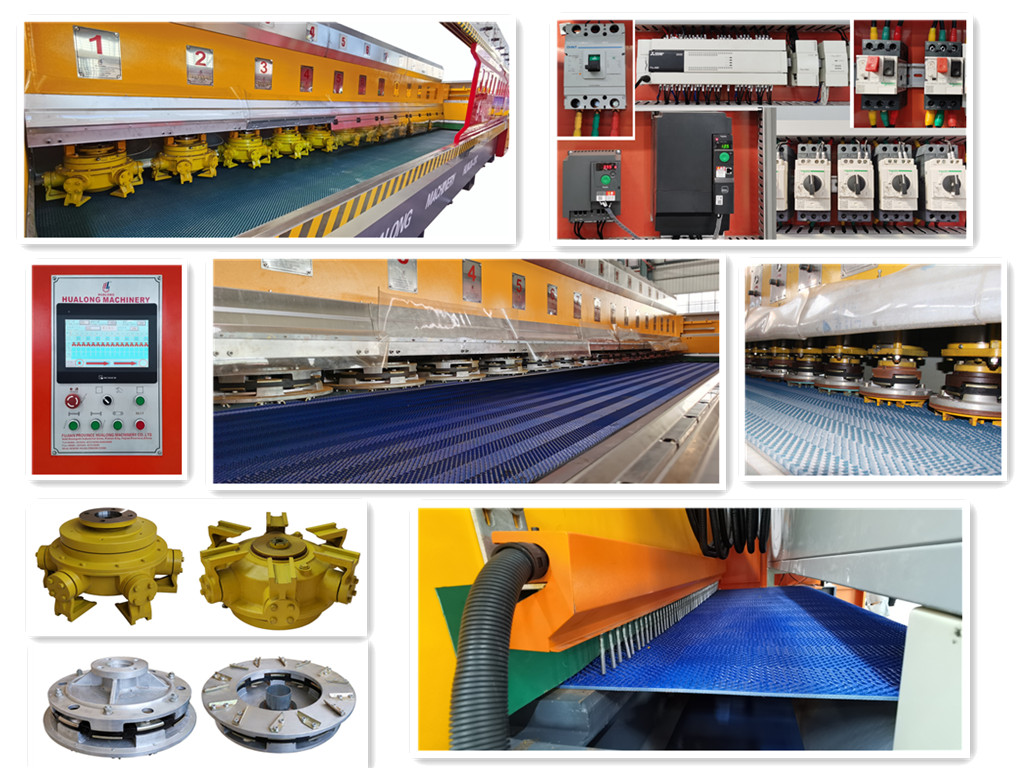

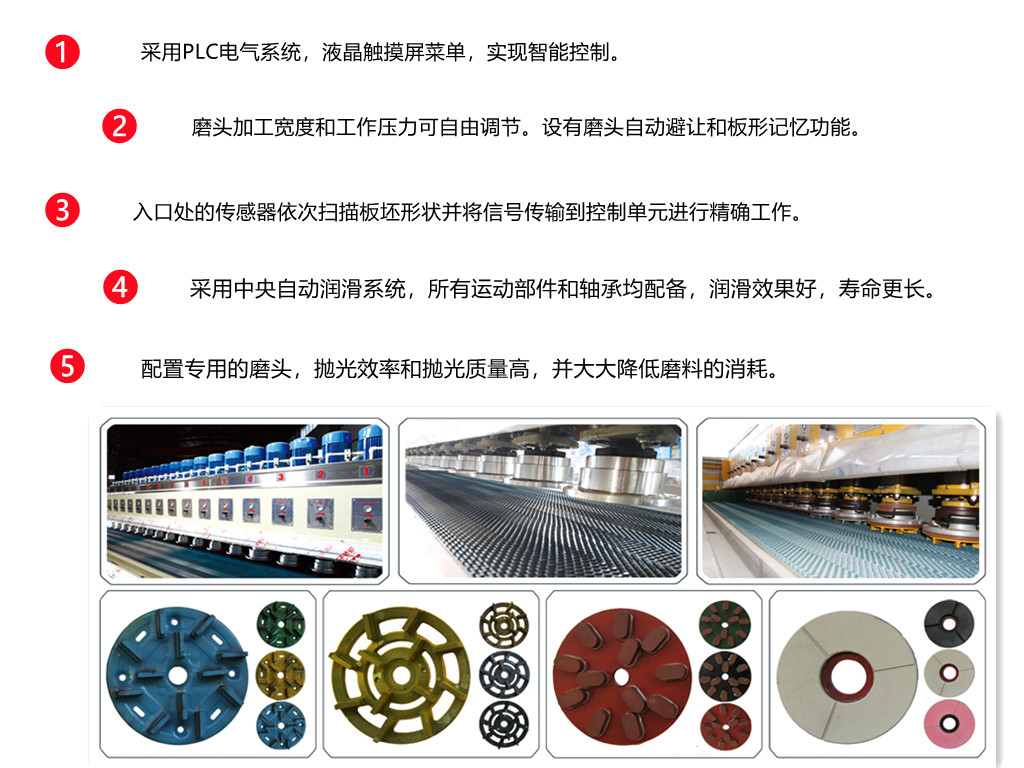

主要特點
1）采用 PLC 電氣系統和 LCD 屏幕菜單實現智能控制。
2) 拋光輪的加工寬度和工作壓力可自由調節。
3）入口處的傳感器依次掃描板坯的形狀，并將信號傳輸給控制單元以實現精確作業。
4）采用中央自動潤滑系統，使所有運動部件和軸承都能獲得良好的潤滑效果，延長使用壽命。
5）輸送帶自清潔及石屑清除系統

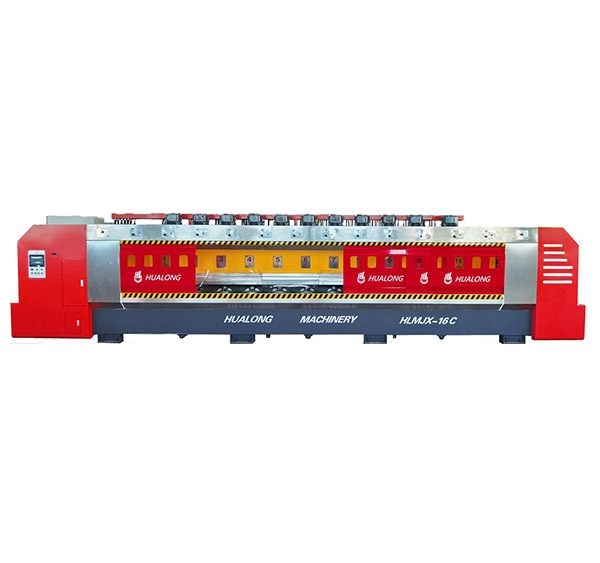

Automatic Stone Line Polishing Machine
Main FeaturesHLMJX-16,equipped with multiple resin disc heads and PLC control system, can grind and plolish slabs continously and automatically, is perfect for surface finishing of hard stone such as granite. Mounted with different type of heads, it’s also great for marble, quartize and other stone slab finishing.
1) Using PLC electrical system and LCD screen menu offer intelligent control.
2) Processing width and working pressure of grinding heads can be adjusted freely .
3) Sensor at the entrance to scan the shape of the slabs in sequence and transmit the signal to controlling unit for precise working
4) Adopting central automatic lubrication system, having all moving parts and bearings to get a good lubricating effect and longer life.
5) Conveyor self-cleaning and stone chip removing system
| 名稱 | 單位 | HLMJX-8 |
HLMJX-12 |
HLMJX-16 |
HLMJX-20 |
HLMJX-24 |
HLMJX-12C |
HLMJX-16C |
HLMJX-20C |
| 磨頭數 | No | 8 | 12 | 16 | 20 | 24 | 12 | 16 | 20 |
| 可磨板材寬度 | mm | 300-1300 |
300-1300 |
300-1300 |
300-1300 |
300-1300 |
400-1300 |
400-1300 |
400-1300 |
| 可磨板材厚度 | mm | 10-60 |
10-60 |
10-60 |
10-60 |
10-60 |
10-80 |
10-80 |
10-80 |
| 皮帶進給速度 | mm/min | 0-3500 |
0-3500 |
0-3500 |
0-3500 |
0-3500 |
0-3800 |
0-3800 |
0-3800 |
| 磨頭總功率 | kw | 7.5 |
7.5 |
7.5 |
7.5 |
7.5 |
15 | 15 | 15 |
| 總功率 | kw | 75 | 105 | 135 | 165 | 195 | 201 | 261 | 321 |
| 耗水量 |
m3/h |
15 | 17 | 20 | 23 | 25 | 20 | 25 | 30 |
| 外形尺寸 | mm | 5600x2200x2300 | 6800x2200x2300 | 8000x2200x2300 | 9200x2200x2300 | 10400x2200x2300 | 9700x2200x2650 | 11800x2200x2650 | 1400x2200x2650 |
| 整機重量 | kg | 10000 | 12000 | 14000 | 16000 | 1800 | 21000 | 25000 | 32000 |
溫馨提示：如果想了解更多細節，規格、標準、價格和解決方案，請聯系我們。
